TipTop Audio Mantis Eurorack Case - Green

42066

2500 DKK

TIPTOP Audio

This product is not in stock

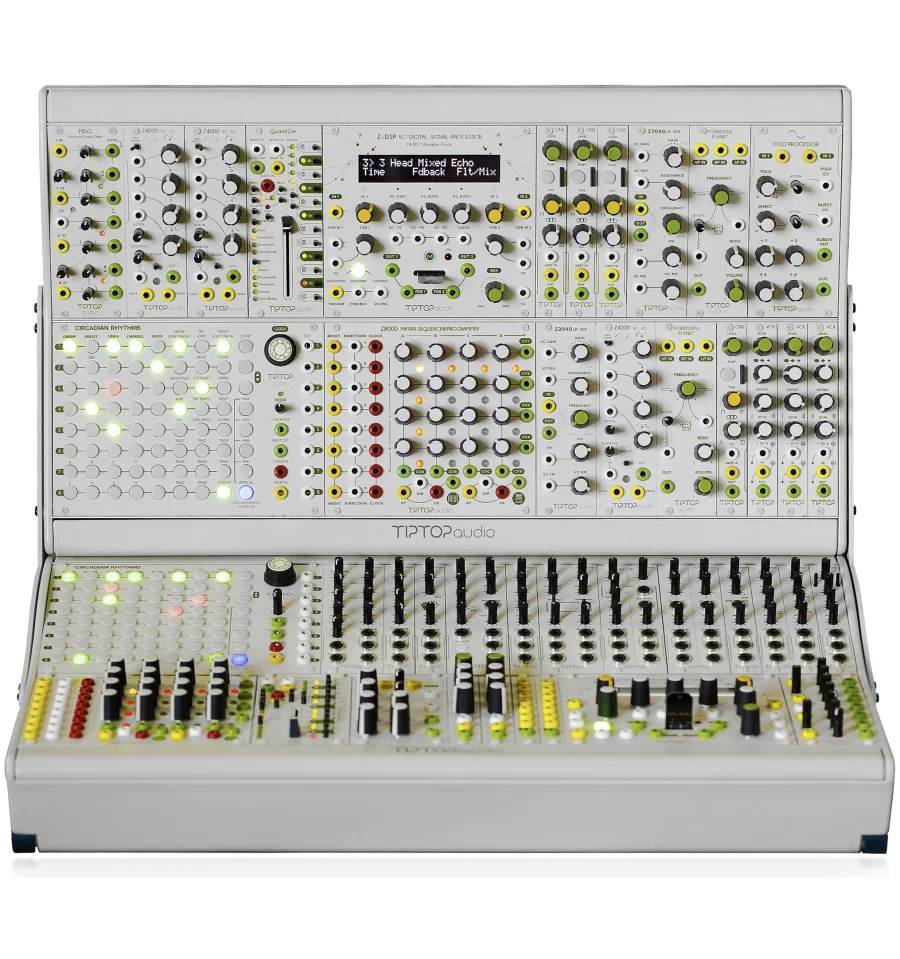

Mantis

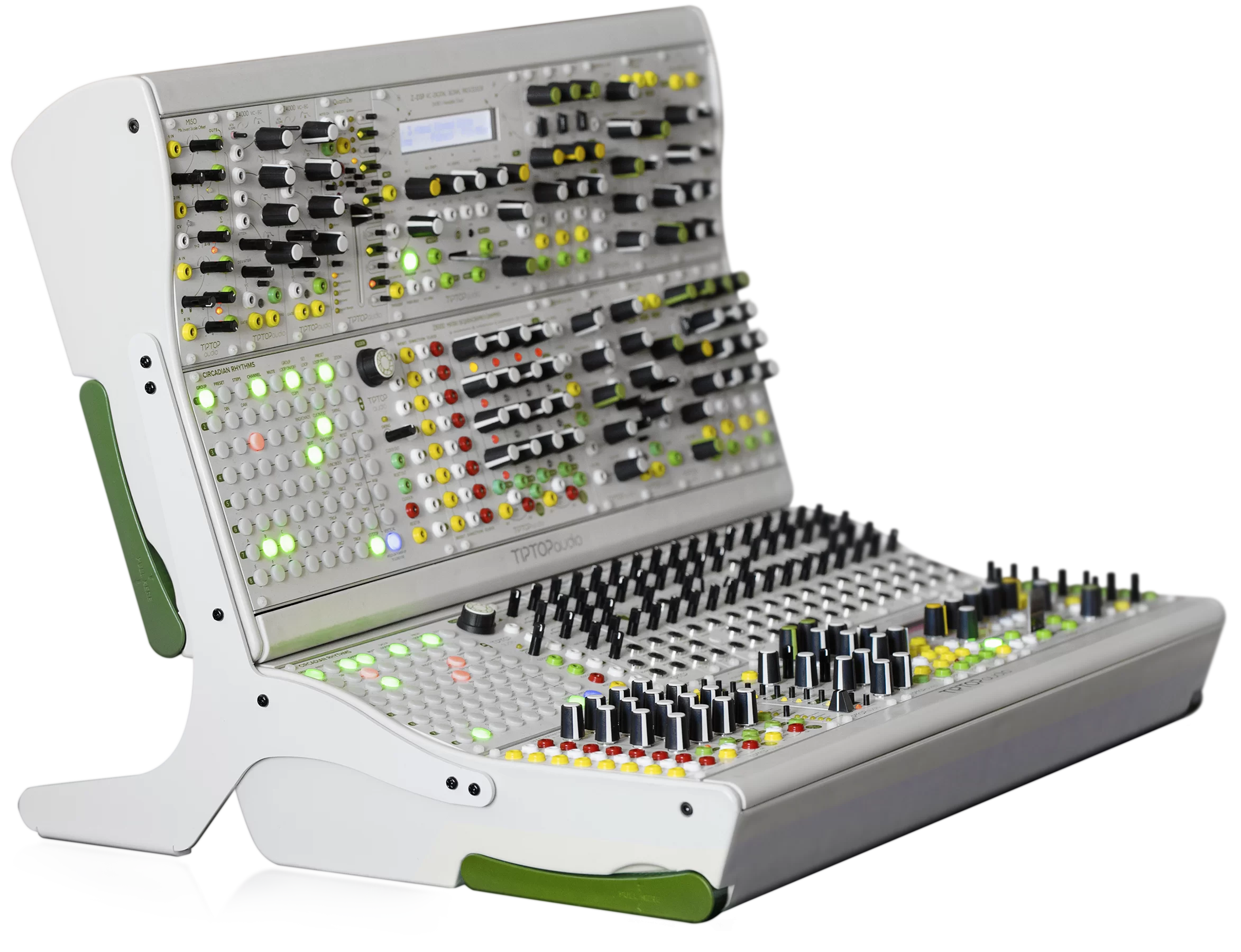

With Mantis, we took our years of experience with Eurorack to create a low-cost case that makes the Eurorack modular synthesizer look, work, and feel like a professional instrument. Mantis is an instrument that is at home on stage, touring, or in the center of the studio.

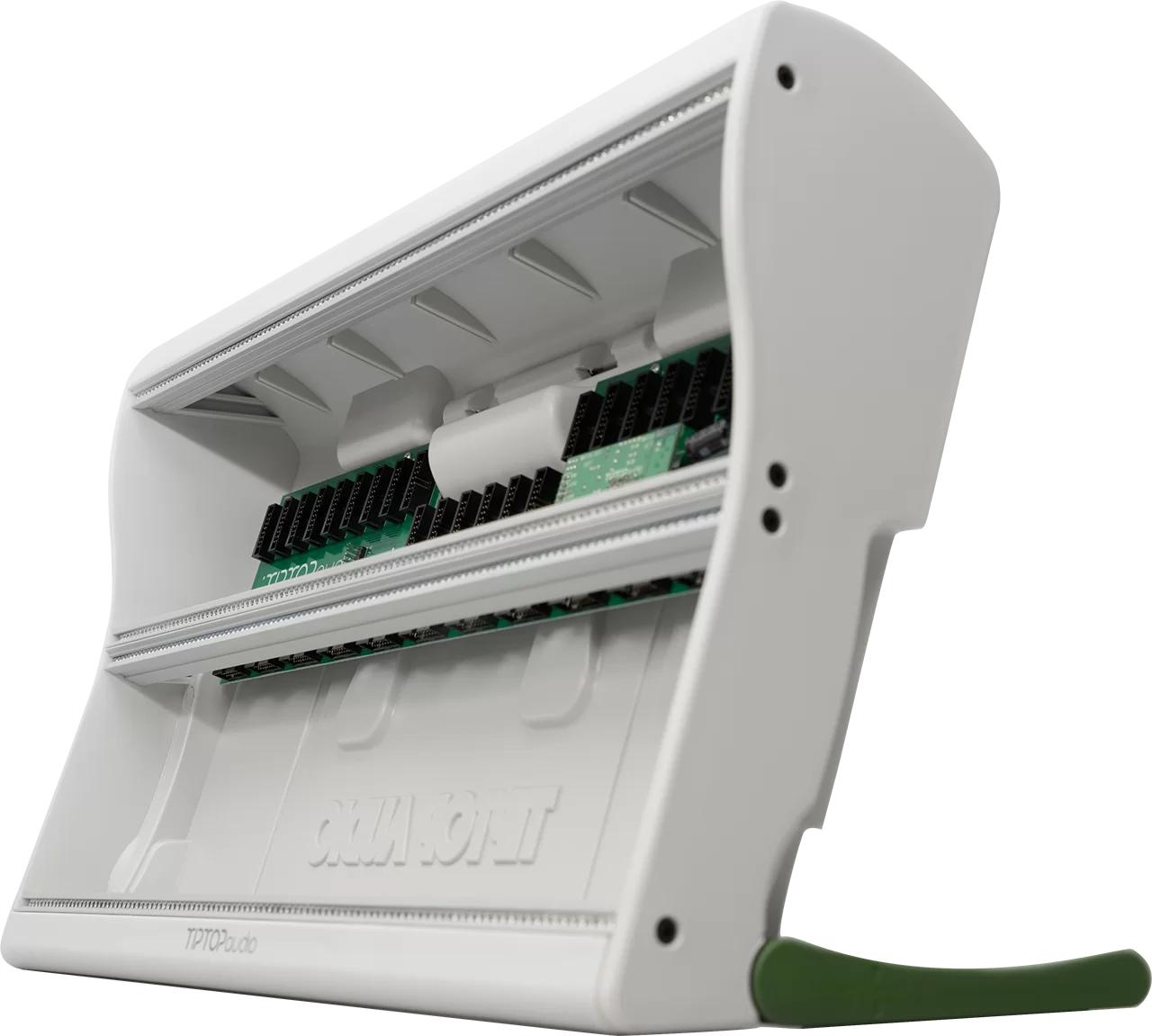

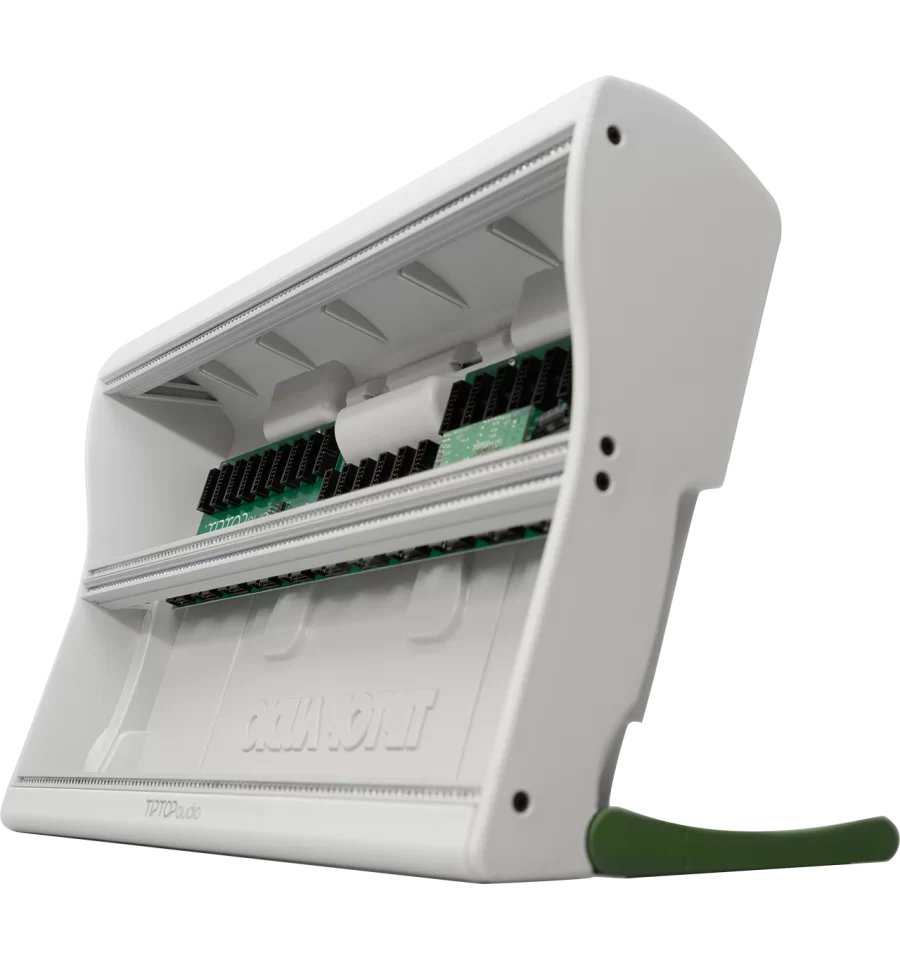

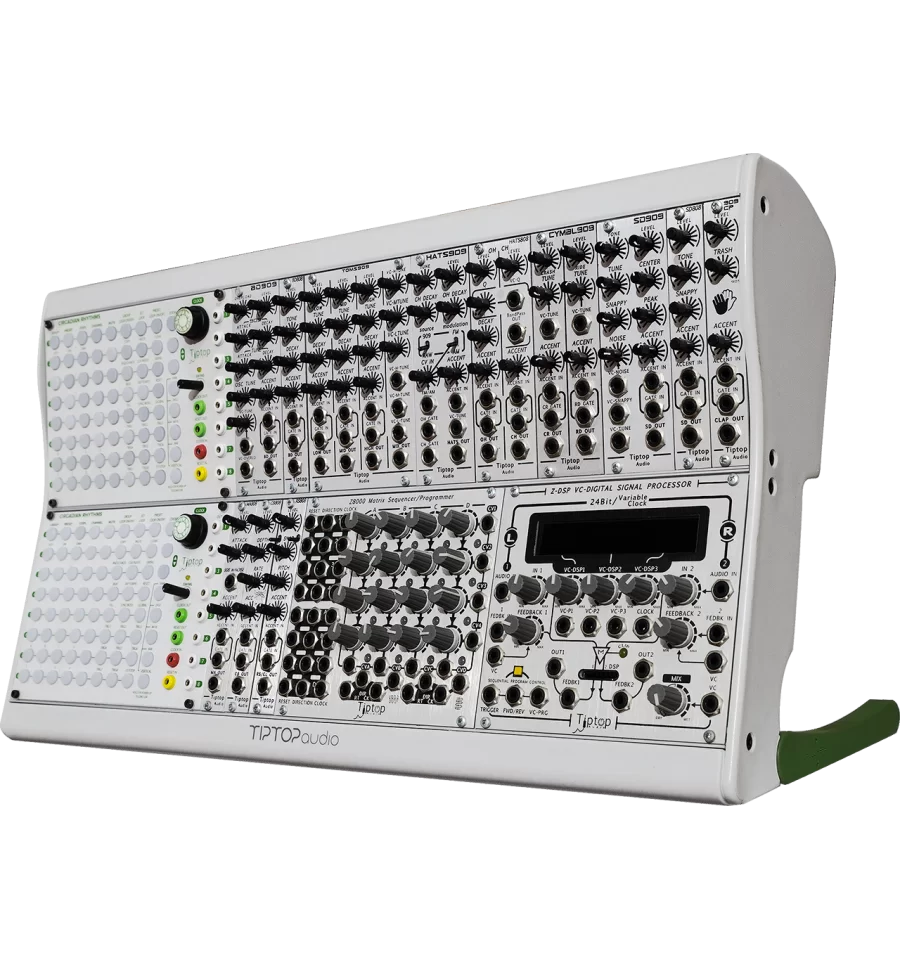

Mantis has two rows of 104HP for you to rack your modules. It comes fully powered and assembled, just drop in your modules and play.

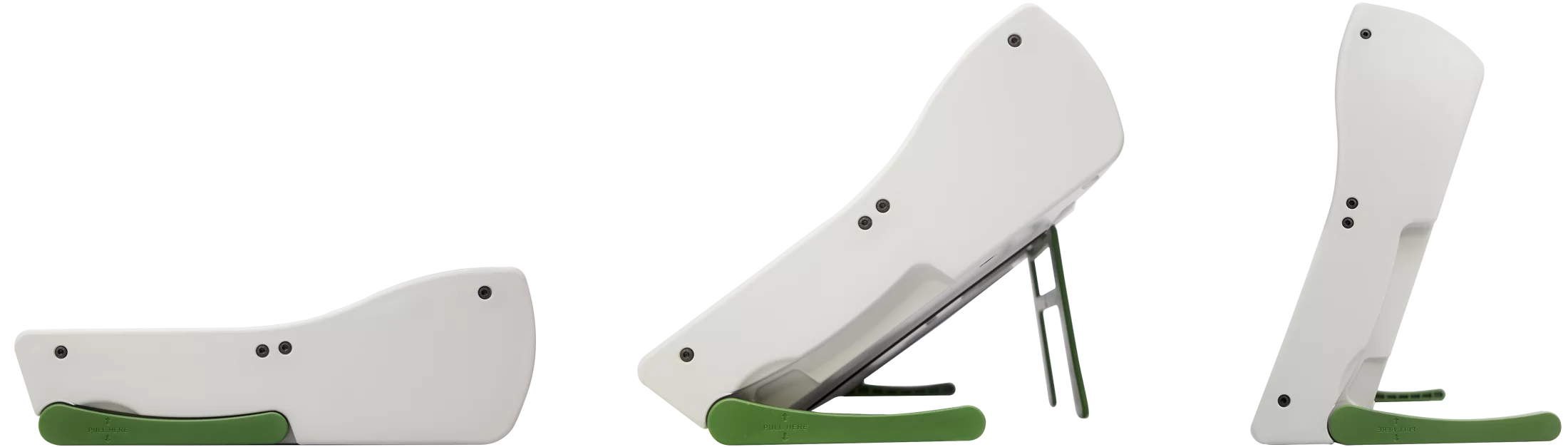

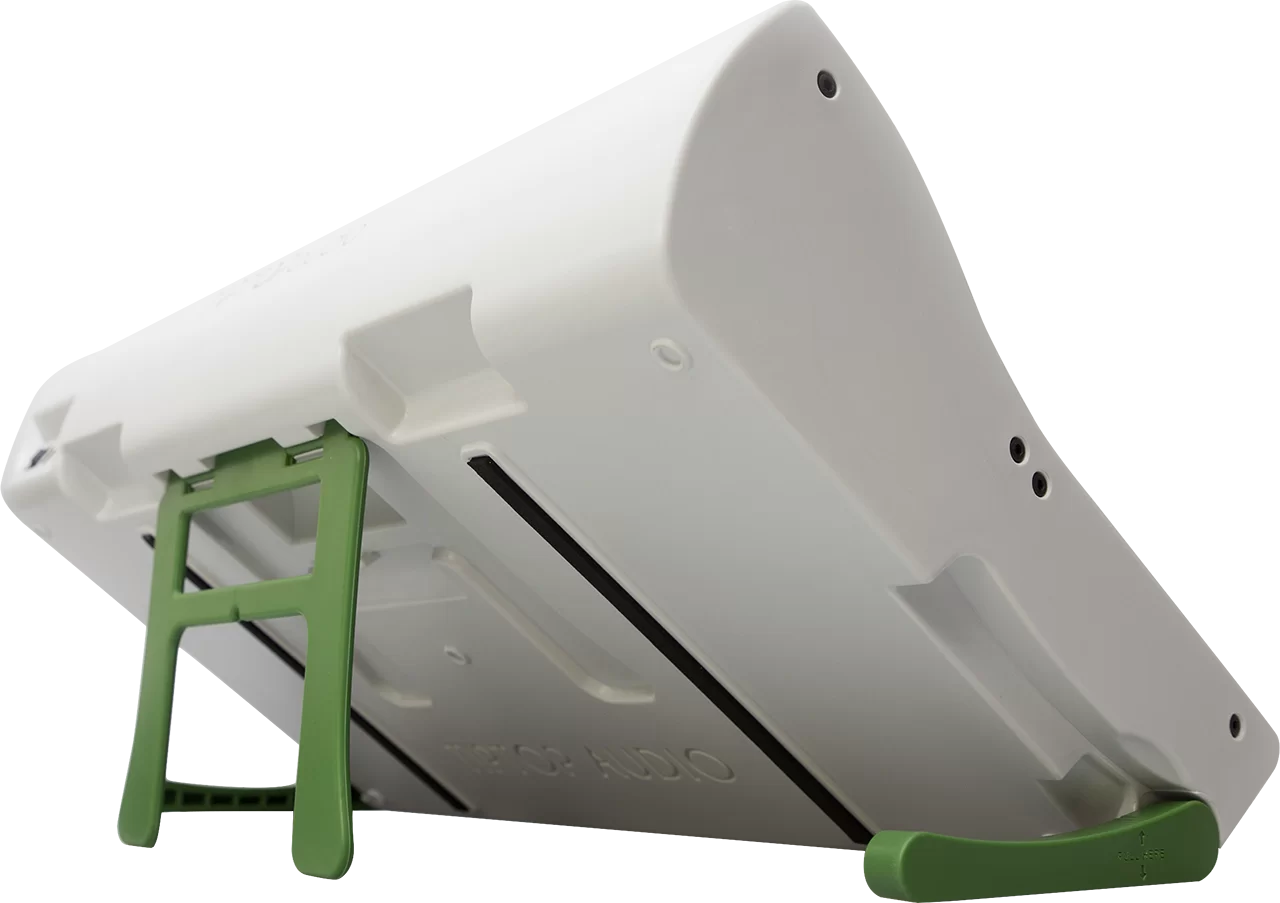

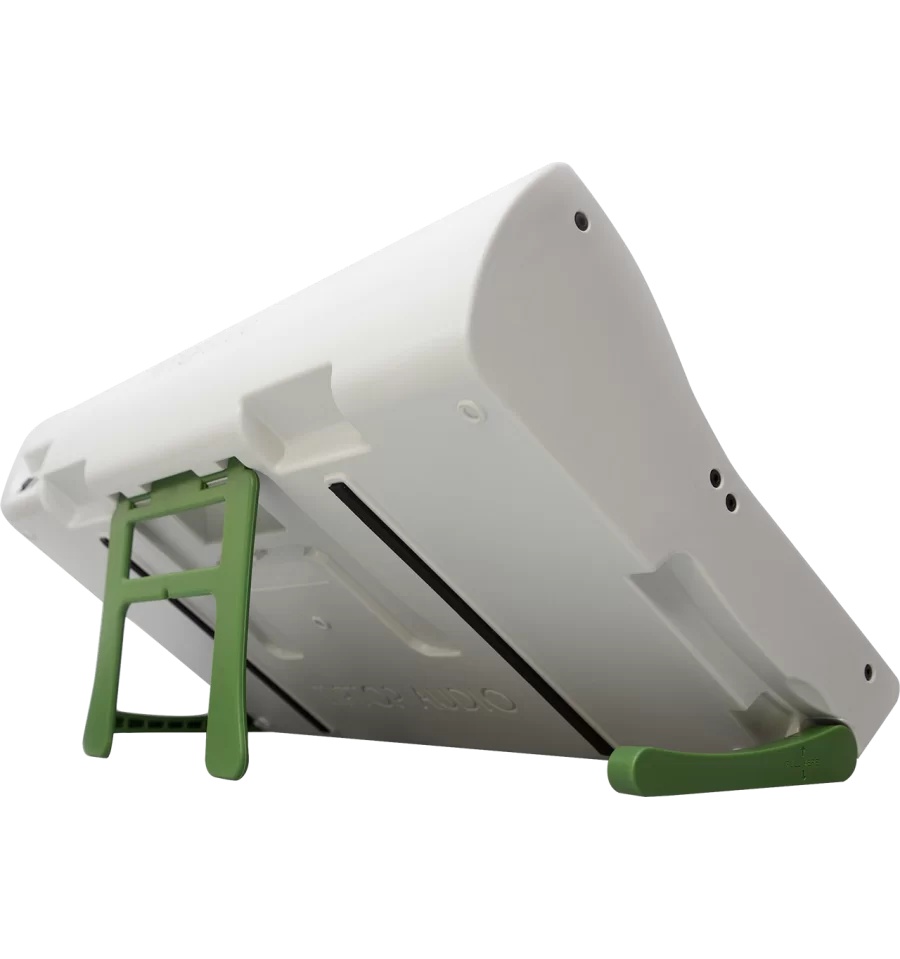

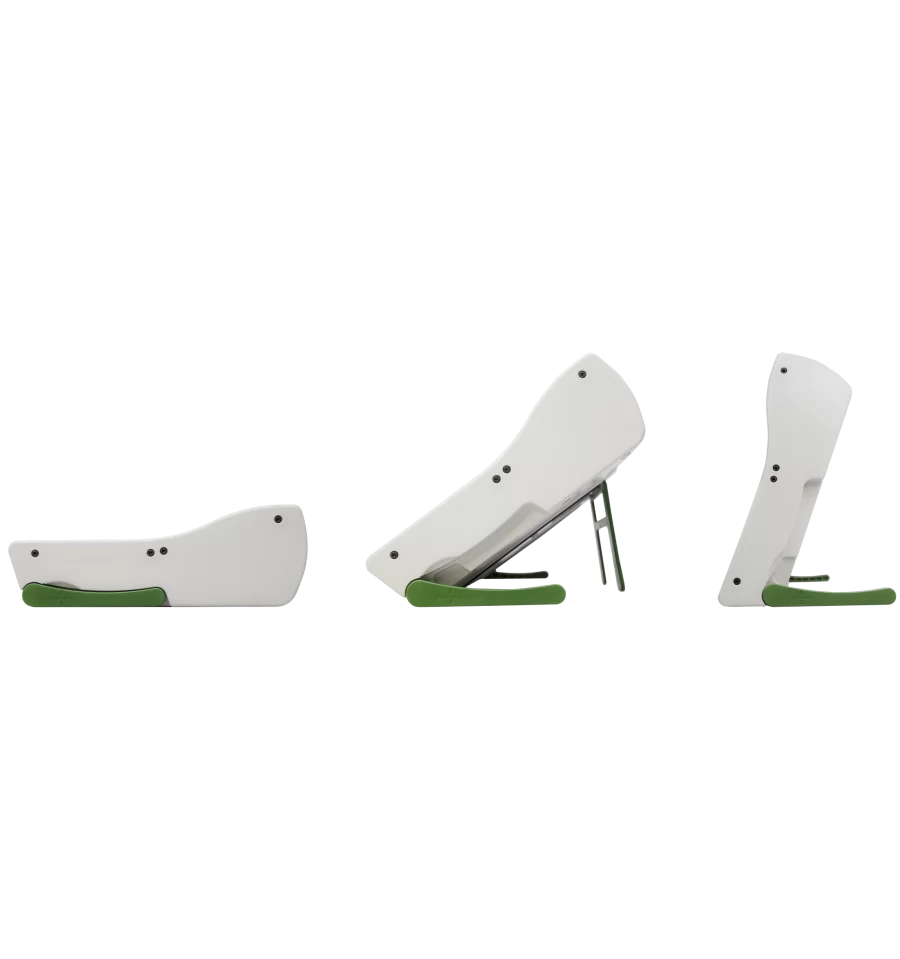

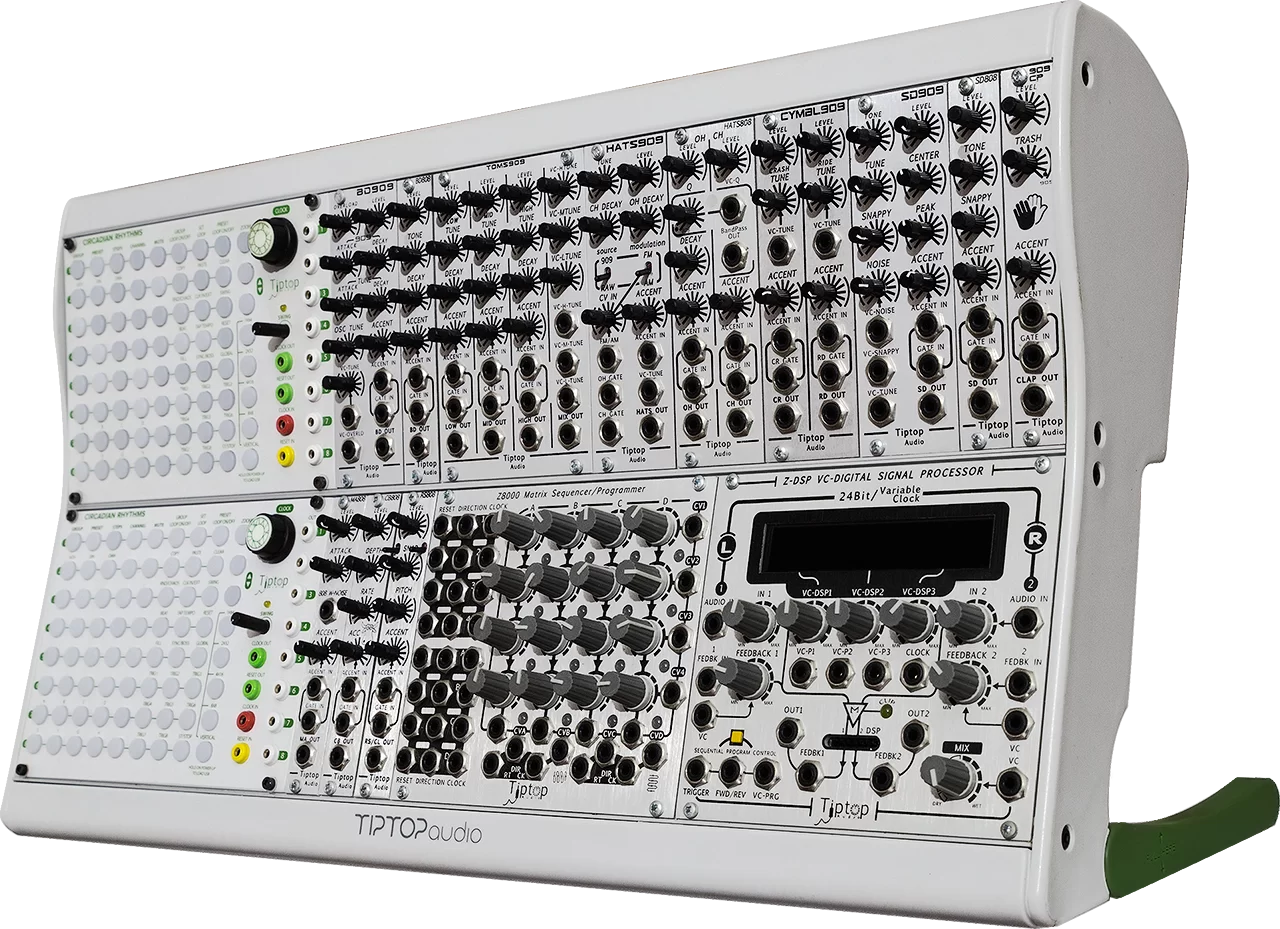

Using its sophisticated leg mechanism, you can set it to three different positions: 0, 45, and 90 degrees.

Power Power and more Power! With Mantis, say bye-bye to the tedious, never-ending calculation of current consumption for the ±12V power. Mantis comes with a juicy Zeus power supply that delivers plenty of power both now and for the future.

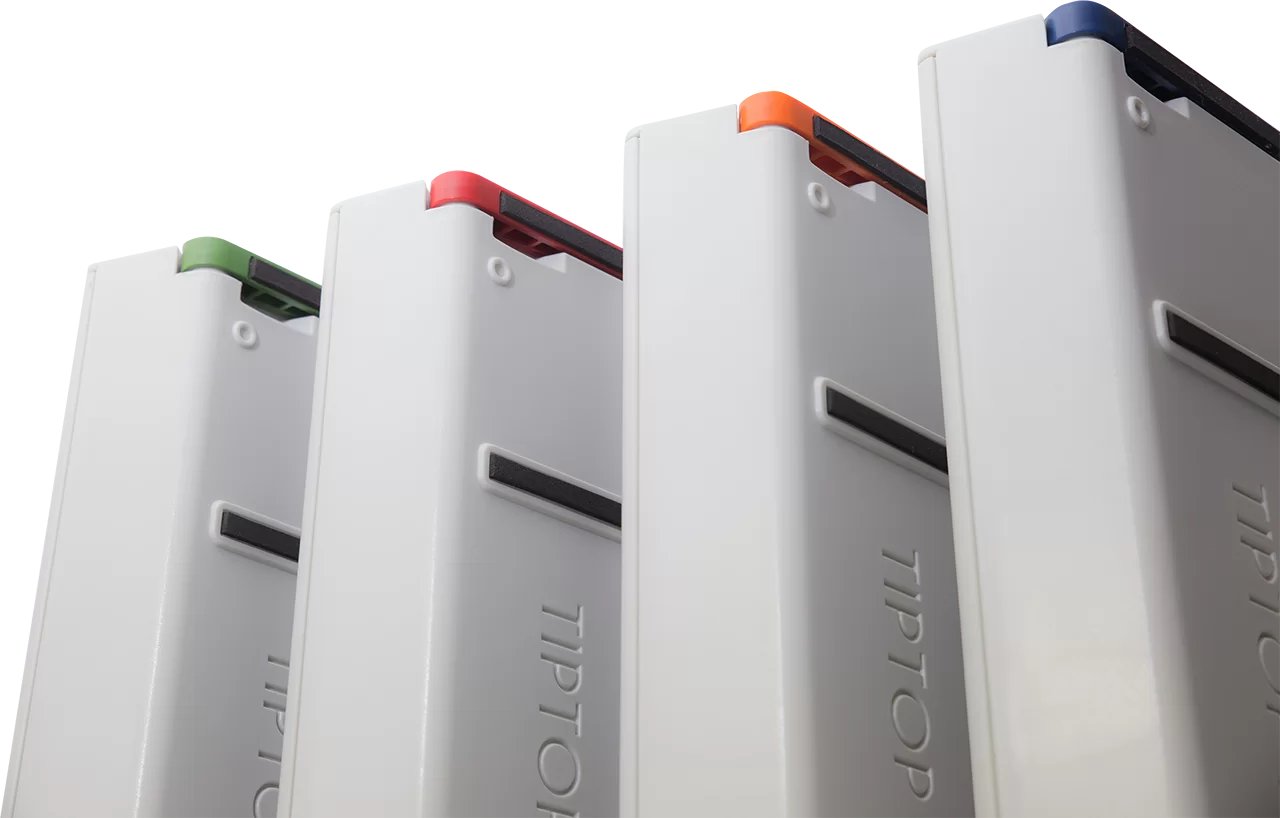

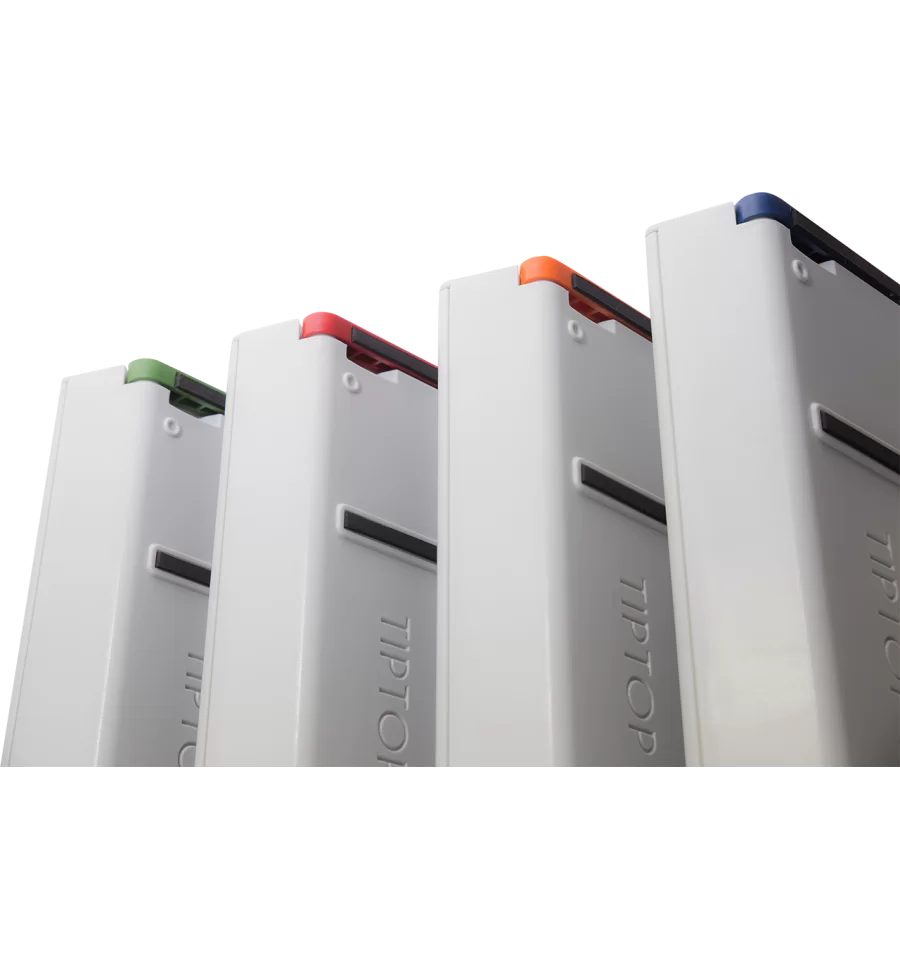

Mantis is beautiful and the color contrast between legs and body gives it its identity. Legs are offered in 4 different colors so anyone can find the right look.

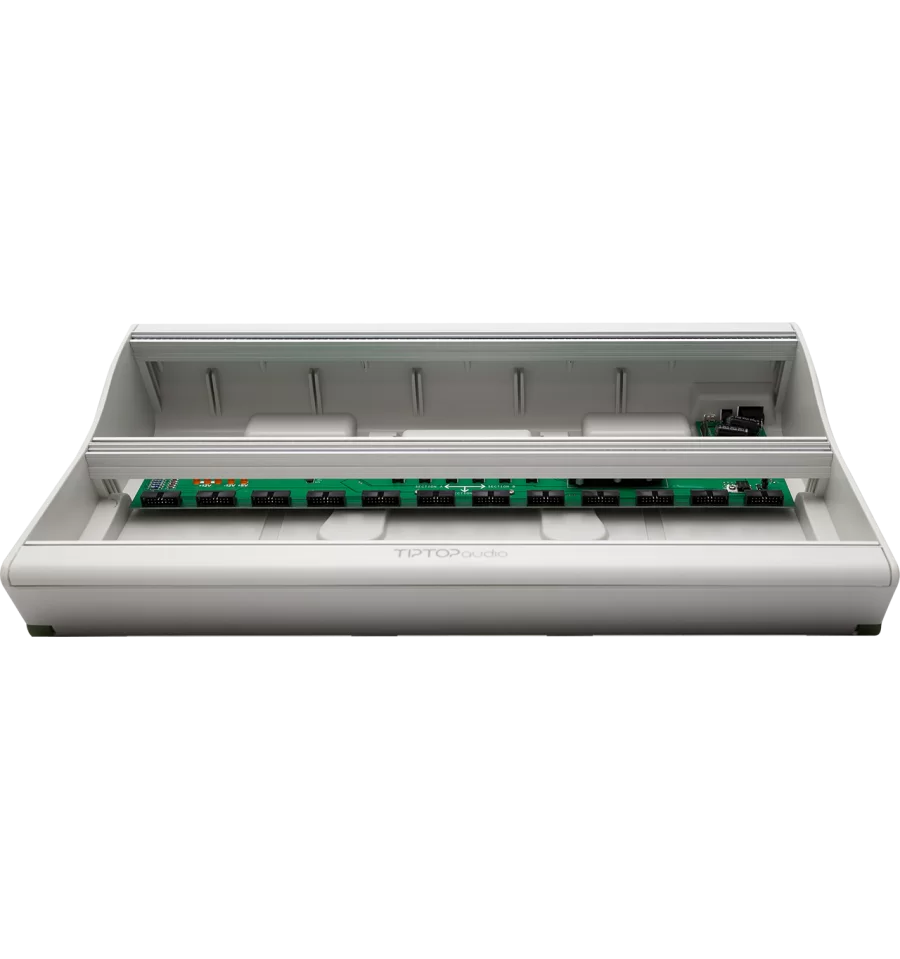

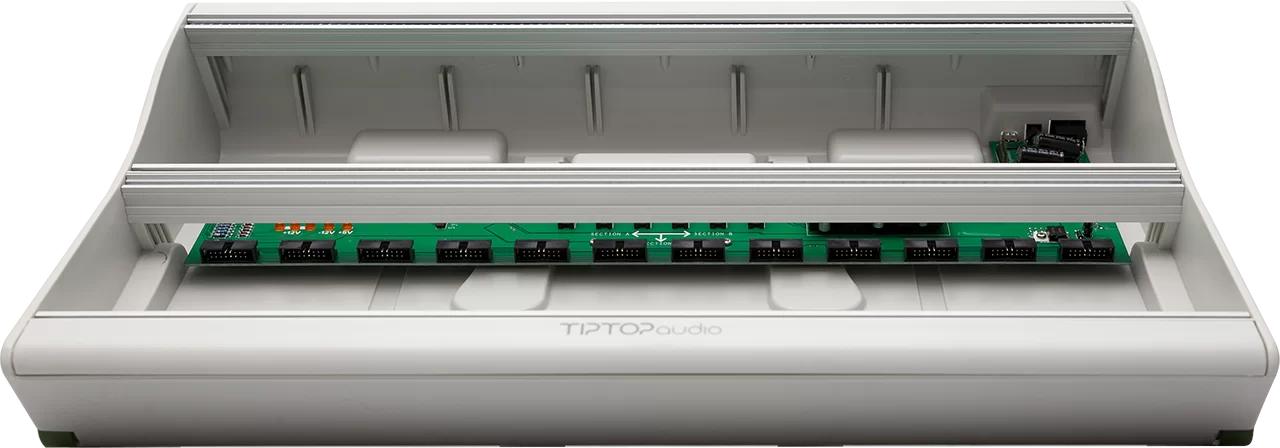

Mantis comes with real Z-Rails made according to Eurorack enclosure standards. No sliding nuts or wrong spacing! It also has keyed power connectors to help protect your modules from damage from plugging the power in in reverse.

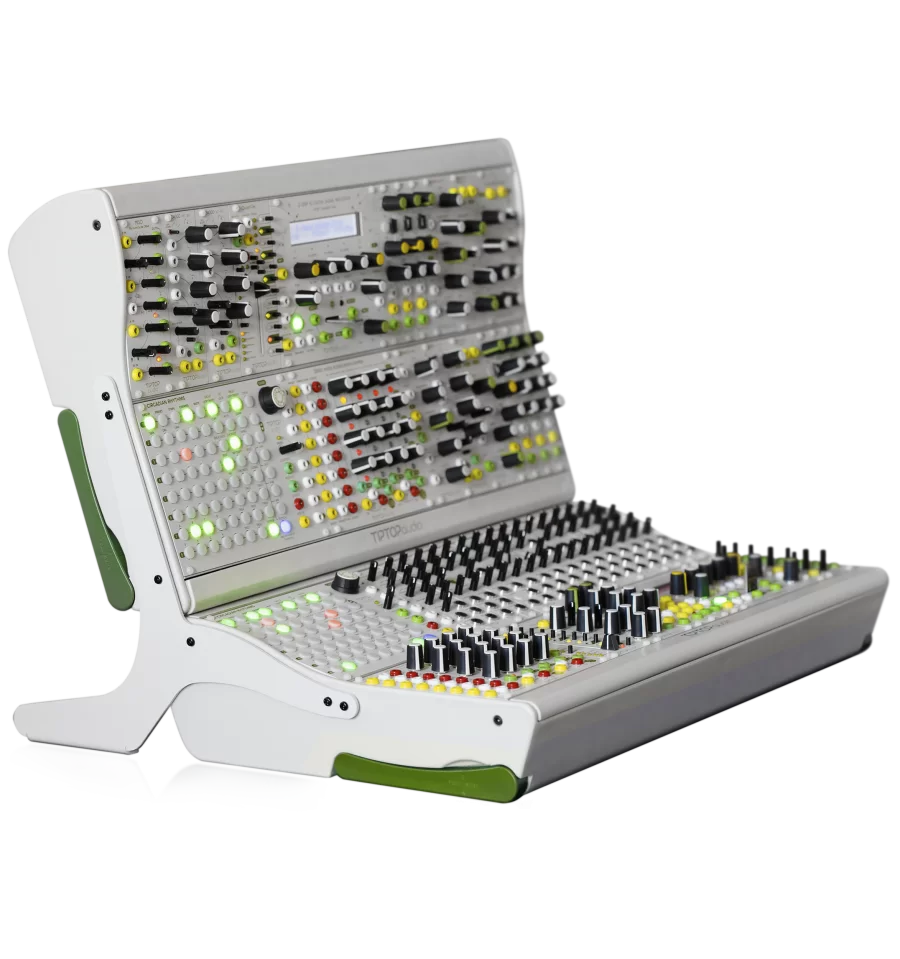

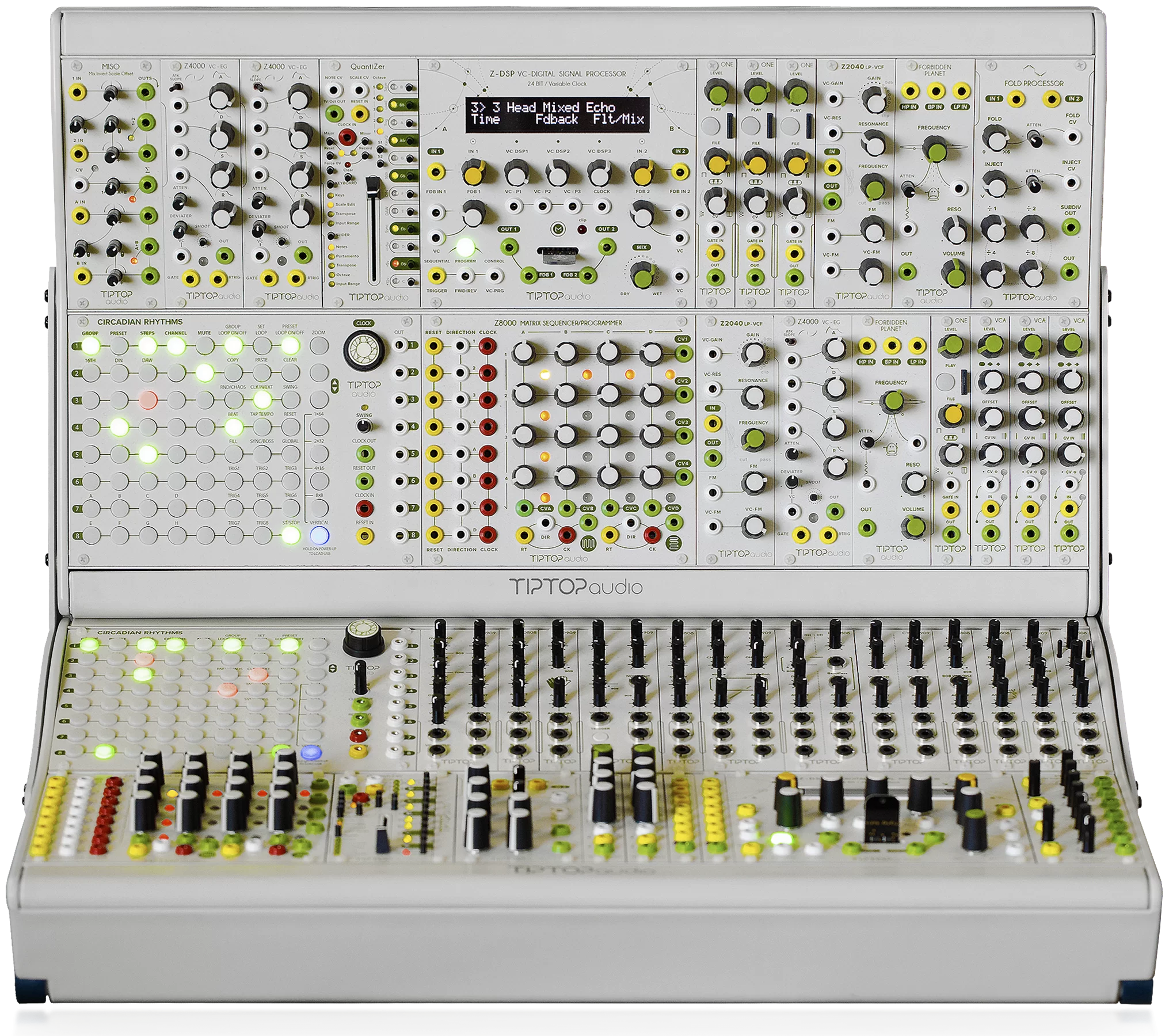

Using the optional bracket accessory Mantis can be doubled up to 416HP! Multiply your Mantis and watch your studio setup grow…

Weighing only 3kg/6.5lb, Mantis is so light, traveling has never been so relaxed.

Electrical specifications (standard version)

  • Bus board: Zeus Powered Mantis series with 36 Eurorack keyed connectors
  • Input Voltage 13VDC
  • DC Regulator model: Zeus DC4000 DC4000 maximum output current: +12V@3A with split zone topology (1A per zone, 3 zone total) -12V@1.1A +5V@300ma
  • Power Adapter: Tiptop Audio 3000ma Mantis Universal Power Adapter
  • Extra features: SyncBus signal distribution
Electrical specifications (standard version)

  • Bus board: Zeus Powered Mantis series with 36 Eurorack keyed connectors
  • Input Voltage 13VDC
  • DC Regulator model: Zeus DC4000 DC4000 maximum output current: +12V@3A with split zone topology (1A per zone, 3 zone total) -12V@1.1A +5V@300ma
  • Power Adapter: Tiptop Audio 3000ma Mantis Universal Power Adapter
  • Extra features: SyncBus signal distribution

No customer reviews for the moment.

Write your review

Write your review

2.500,00 DKK

TIPTOP Audio

This product is not in stock

TipTop Audio Mantis Eurorack Housing Green

  • Housing can be set up in three different angles: 0°, 45°, 90°
  • 36 Slots for Eurorack modules
  • Includes external power supply: +12 V / 3000 mA, -12 V / 1100 mA, 5 V / 300 mA

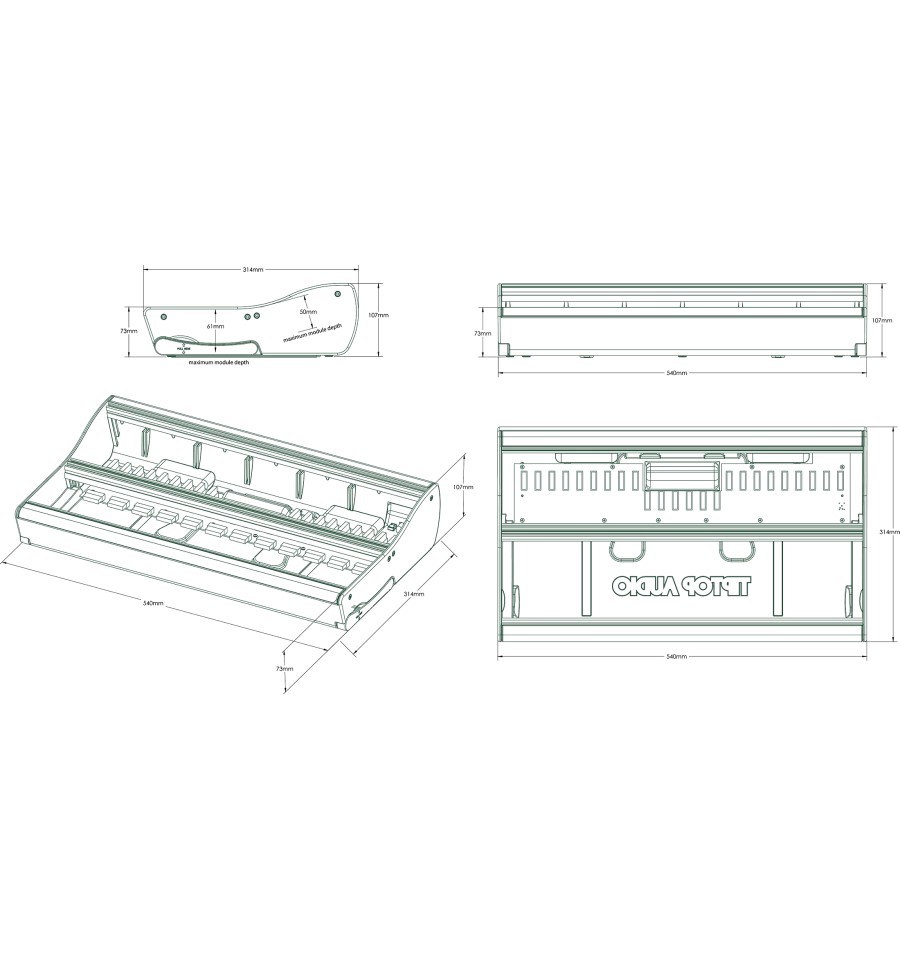

  • External dimensions (W x H x D): 540 x 107 x 314 mm
  • Internal dimensions: Width: 2 x 104 HP / HP
  • Height: 6 HE
  • Depth above the bus board: Approx. 50 mm
  • Inner depth (lower row): Approx. 61 mm
  • 208HP
  • 314mm
